Unique Commercial Louvres
We are proud to partner with and distribute Sunshield Globals louvre products. Find out more on their website:www.sunshieldglobal.com
Labetts are passionate about creating effective solutions to manage daylight, avoid glare and control heating by the sun, and we do this by offering commercial louvres.
Regardless of the complexity of your situation or your request, Labetts ensure a healthy and comfortable indoor environment with a strong positive effect on the energy balance. Every day and for many years. See how they can optimise the working environment here.
Applications
Aluminium Louvre Types
-
80R
An 80-R louvre system is a non-retractable slatted blind with 80-R louvres. These louvres are made from roll-formed aluminium and have a width of 80 mm. An 80-R louvre system is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. Even upside down. The 80-R louvres are generally movable but can also be placed in a fixed position. The 80-R is available in a variety of colours. There are even perforated variants.
Outline specifications:
- Width: 80 mm
- Louvre step: 70 mm
- Material: roll form aluminium
- Applications: Perfect for interior skylights
- Benefits: solar control and daylight management
-
88E
An 88-E louvre system is a non-retractable slatted blind with 88-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 88 mm. An 88-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 88-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 88 mm
- Louvre step: 70 mm
- Material: high-grade extruded aluminium
- Applications: perfect for exterior rooflights and interior skylights
- Benefits: solar control, daylight management and blackout
-
96E
A 96-E louvre system is a non-retractable slatted blind with 96-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 96 mm. A 96-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 96-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 96 mm
- Louvre step: 90 mm
- Material: high-grade extruded aluminium
- Applications: Perfect for façade exterior
- Benefits: solar control, daylight management
-

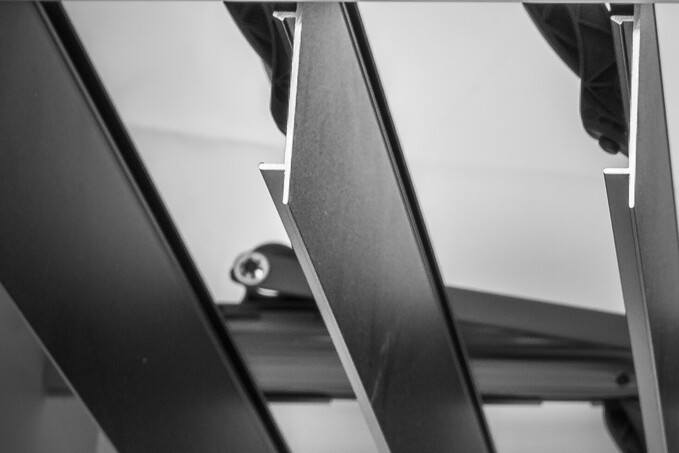

107E
A 107-E louvre system is a non-retractable slatted blind with 107-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 107 mm. A 107-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 107-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 107 mm
- Louvre step: 90 mm
- Material: high-grade extruded aluminium
- Applications: Perfect for façade exterior
- Benefits: solar control, daylight management and blackout
-

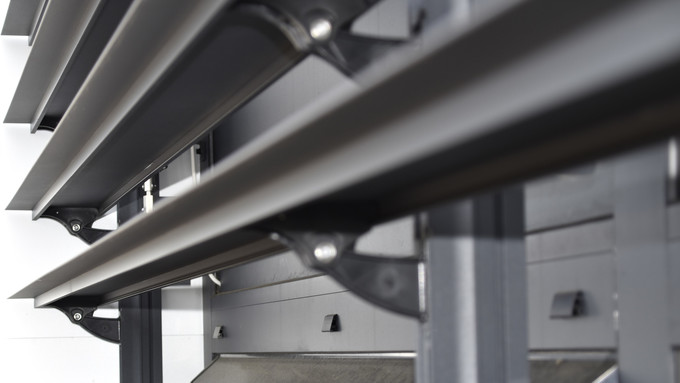

150E
A 150-E louvre system is a non-retractable slatted blind with 150-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 150 mm. A 150-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 150-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 150 mm
- Louvre step: 140 mm
- Material: High-grade extruded aluminium
- Applications: Perfect for façade exterior, rooflight exterior and skylight interior
- Benefits: Solar control, daylight management and blackout
-
155E
A 155-E louvre system is a non-retractable slatted blind with 155-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 155 mm. A 155-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 155-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 155 mm
- Louvre step: 140 mm
- Material: high grade extruded aluminium
- Applications: perfect for façade exterior, rooflight exterior and skylight interior
- Benefits: solar control, daylight management and blackout
80R
An 80-R louvre system is a non-retractable slatted blind with 80-R louvres. These louvres are made from roll-formed aluminium and have a width of 80 mm. An 80-R louvre system is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. Even upside down. The 80-R louvres are generally movable but can also be placed in a fixed position. The 80-R is available in a variety of colours. There are even perforated variants.
Outline specifications:
- Width: 80 mm
- Louvre step: 70 mm
- Material: roll form aluminium
- Applications: Perfect for interior skylights
- Benefits: solar control and daylight management
88E
An 88-E louvre system is a non-retractable slatted blind with 88-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 88 mm. An 88-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 88-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 88 mm
- Louvre step: 70 mm
- Material: high-grade extruded aluminium
- Applications: perfect for exterior rooflights and interior skylights
- Benefits: solar control, daylight management and blackout
96E
A 96-E louvre system is a non-retractable slatted blind with 96-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 96 mm. A 96-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 96-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 96 mm
- Louvre step: 90 mm
- Material: high-grade extruded aluminium
- Applications: Perfect for façade exterior
- Benefits: solar control, daylight management
107E
A 107-E louvre system is a non-retractable slatted blind with 107-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 107 mm. A 107-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 107-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 107 mm
- Louvre step: 90 mm
- Material: high-grade extruded aluminium
- Applications: Perfect for façade exterior
- Benefits: solar control, daylight management and blackout
150E
A 150-E louvre system is a non-retractable slatted blind with 150-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 150 mm. A 150-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 150-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 150 mm
- Louvre step: 140 mm
- Material: High-grade extruded aluminium
- Applications: Perfect for façade exterior, rooflight exterior and skylight interior
- Benefits: Solar control, daylight management and blackout
155E
A 155-E louvre system is a non-retractable slatted blind with 155-E louvres. These louvres are made from high-grade extruded aluminium and have a width of 155 mm. A 155-E louvre system is suited for all kinds of internal and external installations; horizontal, vertical, sloping, and upside-down. 155-E louvres are usually movable but can also be placed in a fixed position.
Outline specification:
- Width: 155 mm
- Louvre step: 140 mm
- Material: high grade extruded aluminium
- Applications: perfect for façade exterior, rooflight exterior and skylight interior
- Benefits: solar control, daylight management and blackout
Wooden Louvre Types
-

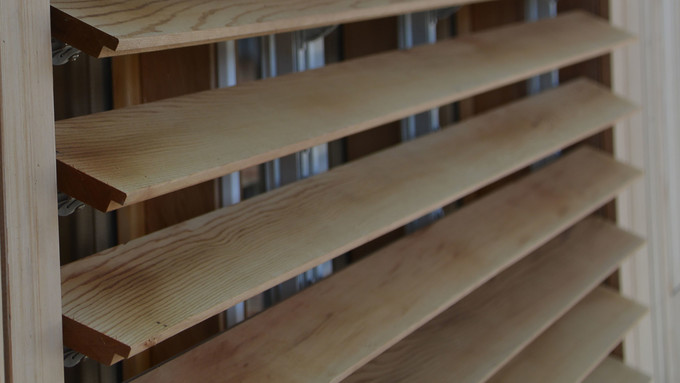

98W
The 98-W louvre system is a non-retractable slatted blind made of wooden 98-W louvres. The width of this louvre is 98 mm, and the thickness is 16 mm. The 98-W louvre system is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. And even upside down. The blades of the blind can be either movable or placed in a fixed position.
Outline specification:
- Width: 98 mm
- Louvre step: 90 mm
- Material: Western Red Cedar
- Applications: Perfect for façade exterior
- Benefits: Solar control, daylight management
-

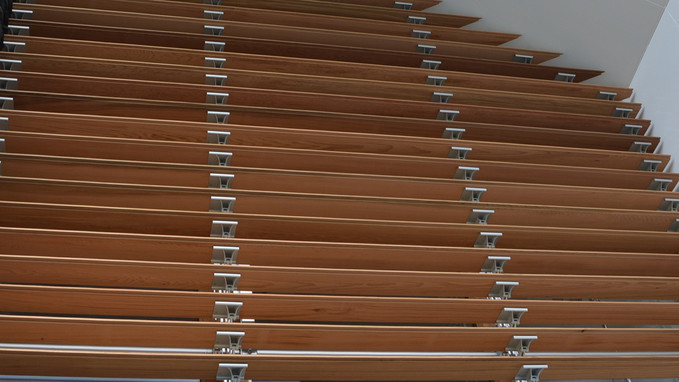

148W
The 148-W is a non-retractable louvre blind made of wood. The width of this louvre is 148 mm, the thickness 16 mm – at the rebates 7,5 mm. The 148-W louvre is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. Even upside down. The blades of the blind can be either movable or placed in a fixed position.
Outline specification:
- Width: 148 mm
- Louvre step: 140 mm
- Material: Western Red Cedar
- Applications: Perfect for façade exterior
- Benefits: Solar control, daylight management
98W
The 98-W louvre system is a non-retractable slatted blind made of wooden 98-W louvres. The width of this louvre is 98 mm, and the thickness is 16 mm. The 98-W louvre system is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. And even upside down. The blades of the blind can be either movable or placed in a fixed position.
Outline specification:
- Width: 98 mm
- Louvre step: 90 mm
- Material: Western Red Cedar
- Applications: Perfect for façade exterior
- Benefits: Solar control, daylight management
148W
The 148-W is a non-retractable louvre blind made of wood. The width of this louvre is 148 mm, the thickness 16 mm – at the rebates 7,5 mm. The 148-W louvre is suited for all kinds of internal and external installations; horizontal, vertical, and sloping. Even upside down. The blades of the blind can be either movable or placed in a fixed position.
Outline specification:
- Width: 148 mm
- Louvre step: 140 mm
- Material: Western Red Cedar
- Applications: Perfect for façade exterior
- Benefits: Solar control, daylight management

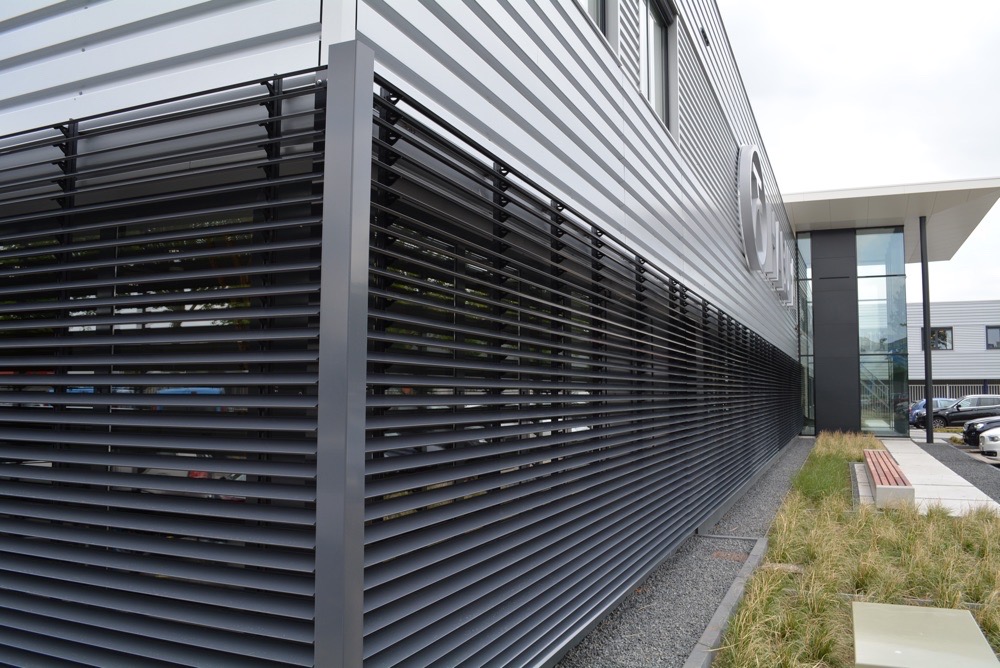

Project Gallery
